The F3SJ Series is a family of three performance level e safety light curtains providing solutions for different safety applications. The F3SJ-EASY type is designed for simple basic applications, the F3SJ-BASIC type is developed for applications that require additional functions. Complex safety solutions are covered by the F3SJ-ADVANCED type.

The safety light curtain of the F3SJ Series cover an operating range of 9 meters, an optical resolution of 14, 25, and 30 millimeters and a protective height of up to 2,5 meters. The size of the protective field is equal to the housing since there is no dead zone. Its small housing fits applications where space is limited.

• Fast response time for a small safety distance
• Quick mount brackets reduce setup time by 50%
• Series connection for flexible setup of protective field
• Easy-to-view LED bar for less alignment and diagnosis effort
• ADVANCE model supports complex safety solutions with muting and blanking functions

PLe safety light curtain

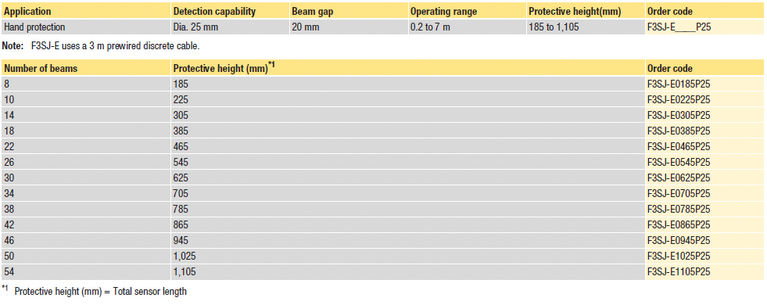

Ordering info:
