01756

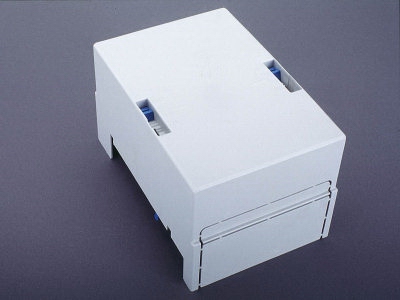

Cover cap, 3-pole
Cover cap, 3-pole, 135 mm wide for busbars 20 - 30 x 5 / 10 mm, double-T and triple-T section
Cover cap, 3-pole
| Description | Part No.: 01756 cover cap, 3-pole 135 mm wide for busbars 20 - 30 x 5 / 10 mm, double-T and triple-T section |
||||||||||
| System | 60mm-System classic | ||||||||||
| Product Group Subgroup | 7 36 |
||||||||||
| Standards | IEC 60439-1:1999 + A1:2004 IEC 60999-1:1999 IEC 60999-2:2003 EN 60439-1:1999 + A1:2004 EN 60999-1:2000 EN 60999-2:2003 DIN EN 60439-1/01.05 DIN EN 60999-1/12.00 DIN EN 60999-2/04.04 |
||||||||||
| Approvals |  Germanischer Lloyd, GOST, CSA, UL (approved for feeder circuits to UL 508A up to 600 V) Type No.: 512-L UL File Number: E123577, Category: NMTR, www.ul.com CSA File Number: 110285, Class Number: 3211-37, http://directories.csa-international.org The product must not be CCC certified |
||||||||||
| Electrical Data | Rated surge withstand capability > 6 KV | ||||||||||
| Mechanical Data | Width x Height x Depth (mm): 135 x 200 x 90 Weight (kg/100): 29,5 |
||||||||||
| Material Characteristics | Cover: temperature stability 125°C, self-extinguishing in acc. to UL 94, creepage resistance CTI 200,halogen-free |
||||||||||
| Remarks | also suitable for use as reserve section cover | ||||||||||
| Pack Size | 1 | ||||||||||
| Catalog | Page: 2011 : 2/7 | ||||||||||
| Downloads |
|
