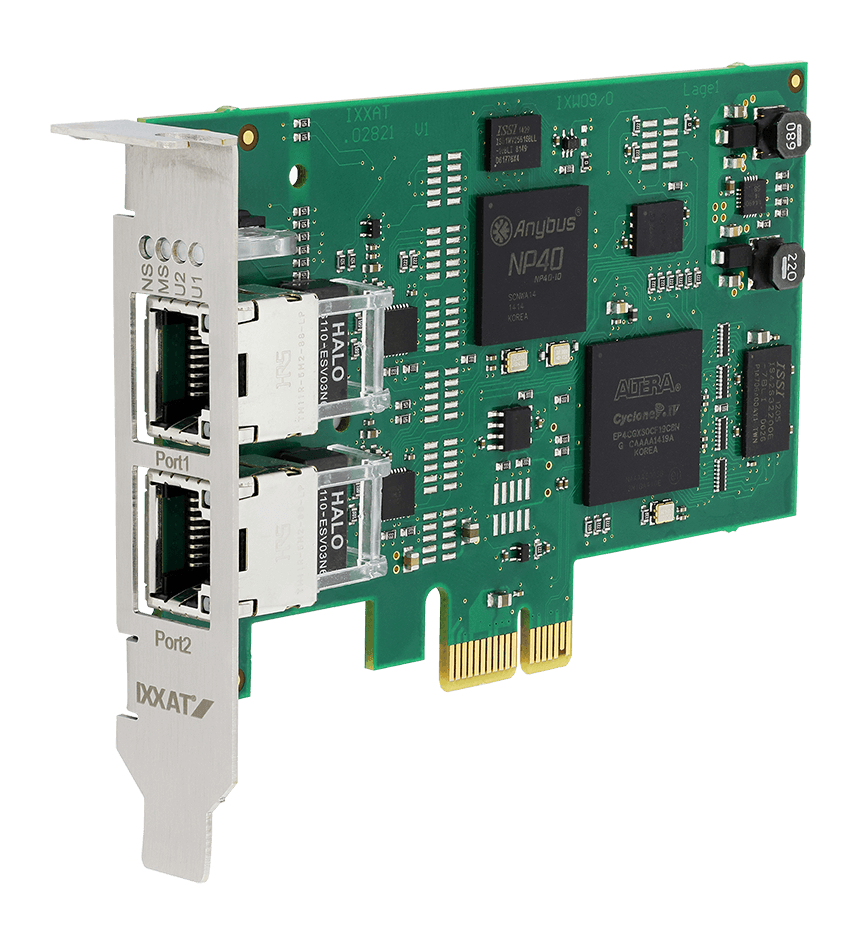

Versatile industrial Ethernet PC interface with multi-protocol support
INpact enables easy connection of PC based slave applications to various industrial Ethernet networks, such as
- PROFINET
- EtherNet/IP
- EtherCAT
- Powerlink
- Modbus TCP
The multi-network capability of INpact is based on HMS’ proven Anybus CompactCom technology used within millions of automation devices globally. The network connection is made through a 2-port Ethernet interface (10/100 Mbit, RJ45), which also supports protocol specific switch functions – such as IRT for PROFINET, DLR for EtherNet/IP and Hub for Powerlink.
The efficient FPGA-based Anybus NP40 network processor handles the communication, providing all functions required to process the communication between the different Industrial Ethernet networks and the PC-based application.
Versatile industrial Ethernet PC interface with multi-protocol support
IXXAT INpact allows you to connect a PC to any industrial network. It combines proven Anybus technology with years of IXXAT know-how in the area of PC interfaces.
| Field bus interface | Two Ethernet ports, 100/10 Mbit |
| PC interfaces | PCI Express single lane port (x1) according to PCI Express base specification, revision 1.1 |
| Network handling | Anybus NP40 |
| Power supply | Via PCIe socket (3.3 V / 12 V DC) |
| Current consumption | Typ. 200 mA / 3.3 V DC, 120 mA / 12 V DC |
| Form factor | Standard height / low profile PCI Express add-in card profile |
| Operating temperature range | 0 °C to 70 °C Option: -40 °C to 70° C |
| Dimensions | 64 x 105 mm |
| Weight | approx. 52 g |
