S8AS

Power Supply with the circuit protector function

Download documentation (enghlish only):

datasheet S8AS

The S8AS series are smart power supplies with digital circuit protectors in a single package. The output is divided to 6 or 8 channels and provides adjustable tripping current range for each channel at 0.1 A increments.  It can save installation space in panel with less-wiring by the integration of the circuit protector functions.

  • Operating temperature range (-10 to +60ºC)
  • The 3 digit, 7 segment display
  • Signal outputs for Tripping function and the alrams
  • Maintenance forcast
  • Start-up & Shut down sequence
  • External tripping input
  • Comunication terminal, RS-485
  • cULus, EN, RoHS compliant
  • UL Class 2 output

Power Supply with the circuit protector function

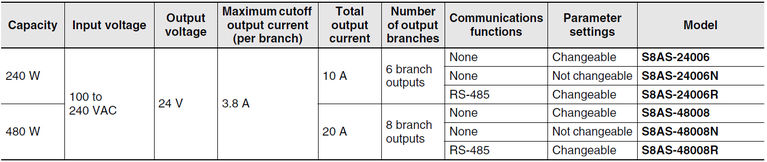

Ordering info:
