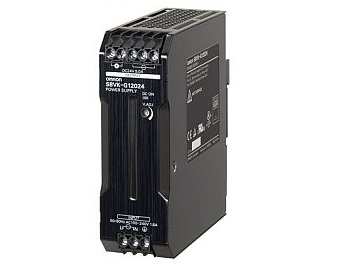

S8VK-G

The S8VK-G offers a wide product range (from 15W up to 480W), in a very compact size.

Download documentation (enghlish only):

datasheet S8VK-G

The S8VK-G offers a wide product range (from 15W up to 480W), in a very compact size. It is 13% smaller than comparable power supplies and the smallest on the market of its type.

  • Wide operating temperature range (-40 to +70ºC) to guarantee operation stability
  • Double set of DC output terminals (three for the negative) to provide easy wiring
  • High efficiency (90%) to reduce energy consumption
  • Power Boost functionality (120%)
  • Improved DIN-rail mounting clip to provide better vibration resistance and allow for easy installation

The S8VK-G offers a wide product range (from 15W up to 480W), in a very compact size.
