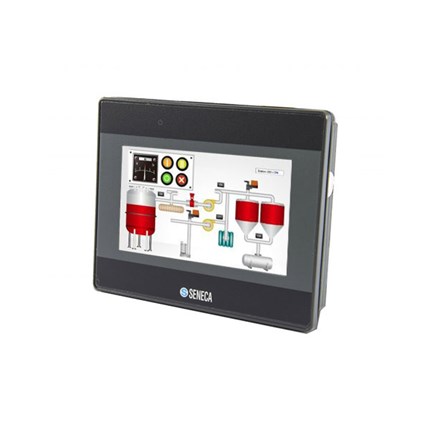

VISUAL1
4,3" HMI panel touchscreen
SENECA expands its offer for the Z-PC with VISUAL, the new range of operator panels suitable for the most common industrial controllers and supervisory/automation systems.
VISUAL1 is a 4.3" HMI equipped with a powerful 400Mhz RISC CPU, 64 MB of RAM, high quality display LED backlights with a 480x272 pixel resolution and 2 serial ports (Nr. 1 RS232/RS485 and Nr. 1 RS485).
Thanks to its USB 2.0 port (client) at the bottom of the panel you can easily transfer data. 128 MB of flash capacity permits you to download projects up to 16 MB and logs/sample datas up to 48 MB.
4,3" HMI panel touchscreen
SENECA expands its offer for the Z-PC with VISUAL, the new range of operator panels
| ORDER CODE : | VISUAL1 |
| DESCRIPTION: | 4,3" HMI panel touchscreen |
| POWER SUPPLY: | 24 Vdc |
| POWER CONSUPTION: | 250 mA @ 24 Vdc |
| DISPLAY: | 4.3” TFT LCD, 480x272 px resolution, 65k colors |
| TOUCHSCREEN: | Resistive 4 wires |
| CONNECTIONS: | Nr. 1 miniUSB Client 2.0 port Nr. 1 RS232/RS485 port Nr. 1 RS485 port |
| OPERATING TEMPERATURE: | -20..+60°C |
| PROTECTION DEGREE: | NEMA4 / IP65 |
| CPU: | 32 bit RISC 400 MHz |
| FLASH MEMORY: | 128 MB |
| RAM: | 64 MB |
| RTC: | built-in |
| DIMENSIONS (WXHXD): | 128x102x32 mm |
| WEIGHT: | 250 g |
| STANDARD: | CE |
