Z-Modem

GSM/GPRS Quadband industrial Modem

Download documentation (enghlish only):

datasheet Z-Modem

The rated input voltage of the module varies in the range 11..40 Vac and 19.. 28 Vdc with 2W (standby) 6.5 W (max) consumption. Z-MODEM is equipped with SMA type antenna connector and standard SIMcard slot (21 x 15 mm). Designed for quick assembly on DIN 46277, Z-MODEM is ideal for automation applications, M2M (Machine to Machine), remote control, environmental monitoring, security, remote I / O.

GSM/GPRS Quadband industrial Modem

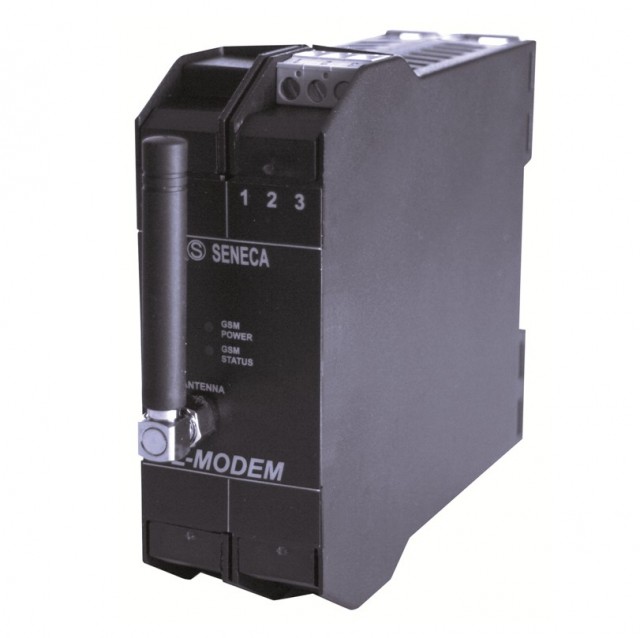

Z-MODEM is a GSM / GPRS Quadband industrial modem with RS232 serial interface.

Order code :   Z-MODEM
Description:   GSM - GPRS Quadband Industrial Modem
Power Supply:   11..40 Vdc; 19..28 Vac
Isolation:   1.500 Vac
Operating Temperatura:   -10..+50°C
Serial Interface:   RS232
Supported Protocols:   Ftp, Smtp, Pop3, http , TCP-IP
GSM:   Quadband (GSM 850MHz, EGSM 900MHz, DCS 1800MHz, PCS 1900MHz)
GPRS:   GPRS data downlink transfer
